Sizes: DN 10-400
Pressure classes: PN 10-100
Materials: GGG 40.3, C-steel, AISI 316, PVDF
Measurement range: 1.8 l/h – 1 440 m3/h
Accuracy: ±0.1-0.5 %
Other designations: PD flow measurement

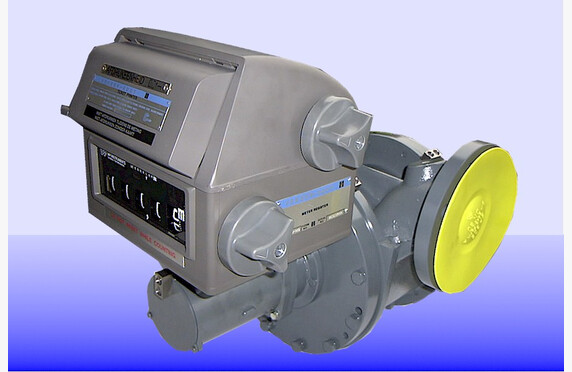

PD meters are used to measure various liquids. They operate on the displacement principle, meaning that with one full rotation a certain volume passes through the meter.
Viscosities can range from those of liquid gases to the properties of bitumen. If a liquid can be pumped, it can also be measured.
The meters are highly accurate and are therefore well suited for dosing, measuring additives and oil consumption, or for billing purposes. The range includes various display devices, counters, and signal converters.
Other media can include acids, ethylene, propylene.
VAF PT2 LoFlow MidFlow Sliding Vane Flowmeters
Download PDF
VAF MidFlow HiFlow Sliding Vane Flowmeters
Download PDF
Bopp Reuther OI Oval Wheel Meter
Download PDF
Bopp Reuther Flowal Plus OR OF Oval Wheel Meter
Download PDF
