Other names: condensate drain ultrasonic meter, steam trap leak detector, steam trap testing equipment
Under normal operating conditions, high-quality condensate drains function in such a way that they do not allow any fresh steam to pass through. However, over time the condensate drain can become faulty due to various reasons such as clogging, pressure surges or normal wear and tear. In these situations, the condensate drain may end up in a state where it no longer passes the condensate or fails to close, thereby also allowing fresh steam to pass.
A single leaking condensate drain can cause annual losses of up to 50,000 euros, depending on its rating and pressure, so regular monitoring is economically sensible.

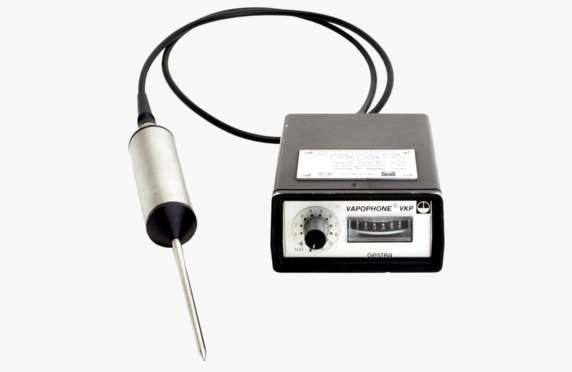

GESTRA VKP 10 is a leak detector for condensate drains that accurately and reliably measures leaking drains. The meter operates based on ultrasonic measurement. In the event of a malfunction, i.e. when steam flows through the drain, it is visually displayed on the device’s meter. Checking the drain takes only a few seconds.

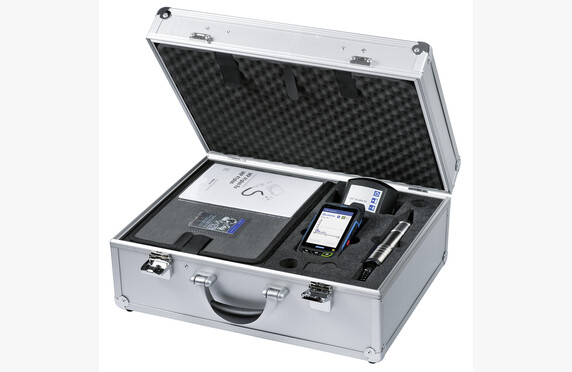

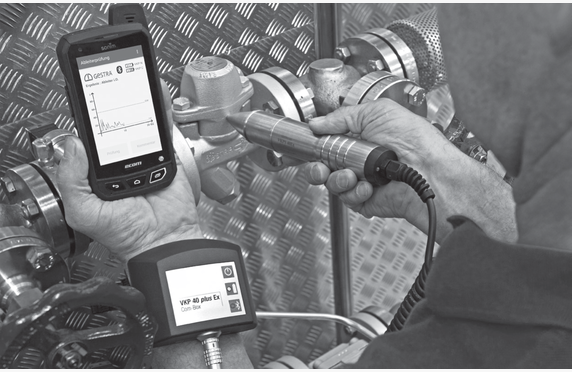

On the other hand, GESTRA VKP 41 Plus is a next-generation leak detector, with which the data obtained during measurements can be transferred directly into a database. This enables the data to be utilised in reporting and makes it easy to compare measurement results from different years. Visually, the new VKP 41 Plus is also different. While the VKP 10 displays the measurement result on a scale of 1–6, the VKP 41 Plus draws graphics and indicates any leaks or condensate blockages.
– For all types of condensate drains regardless of the manufacturer
– Automatic interpretation of the condensate drain condition (VKP41 Plus)
– Does not require prior knowledge of condensate drains (VKP41 Plus)
– Integrated temperature measurement (VKP41 Plus)
– Easy reporting of steam losses and CO2 emissions

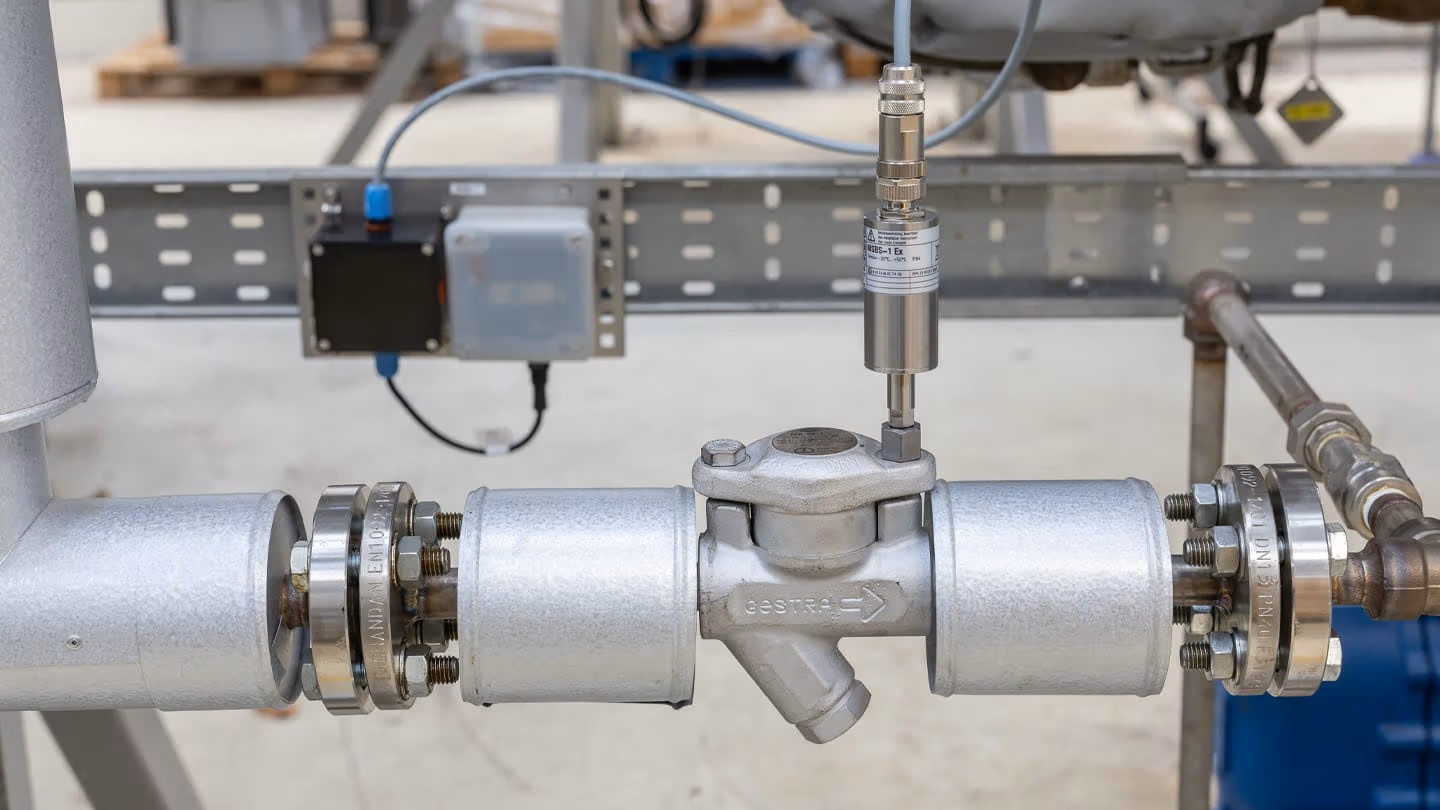

The monitoring of condensate drain condition can also be automated with the GESTRAN ecoBolt remote monitoring system.
Our service includes measurement, reporting, and a repair proposal. If desired, we also perform the actual maintenance work. Read more about our measurement service.
