Ultrasonic flowmeters

Metra ultrasonic flow meter
Metra ultrasonic flow measurement

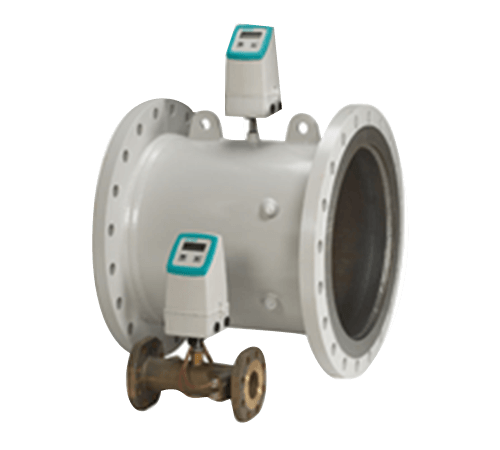

Metra ultrasonic flow meter for hot and cold

Media

Steam and condensate
Process media

Manufacturers

Intra-Automation
METRA Energie-Messtechnik

Technical Specifications

Size classes: DN 15-1000
Pressure classes: PN 40
Materials: carbon steel
Connection ends: flanged, threaded
Temperature range: max. 200 °C
Other names: ultrasonic flow meters

What is an ultrasonic flowmeter?

Ultrasonic meters are used for measuring liquid flow.

The measurement is based on the travel time of sound in a known liquid. The ultrasonic flowmeter sends an ultrasonic signal into the pipe to be measured while also receiving the return signal. When the pipe size and the speed of sound in the flowing medium are known, the flow rate of the medium can be calculated based on the obtained signal.

Choosing an Ultrasonic Flowmeter

Ultrasonic flowmeters are also available in battery-operated form, which reduces installation costs in locations where electricity is not readily available.

Measurement is also possible from the top of the pipe.

In addition to the measurement that is introduced into the pipe, there is also measurement from the surface of the pipe. The sensors are installed at a distance from each other, as specified in the instructions for use depending on the pipe’s diameter, so that the pipe does not have to be drilled. This is also suitable for temporary verification measurements. However, the surface measurement is always performed in such a way that the pipe is full of the liquid being measured.

We assist in selecting an ultrasonic flowmeter that meets the requirements of the application. Ask our contacts for more information.

Download Brochures

download

Intra-Automation Ultrasonic Flowmeter Type IS210-S

Lataa PDF
